Sensor Bridge

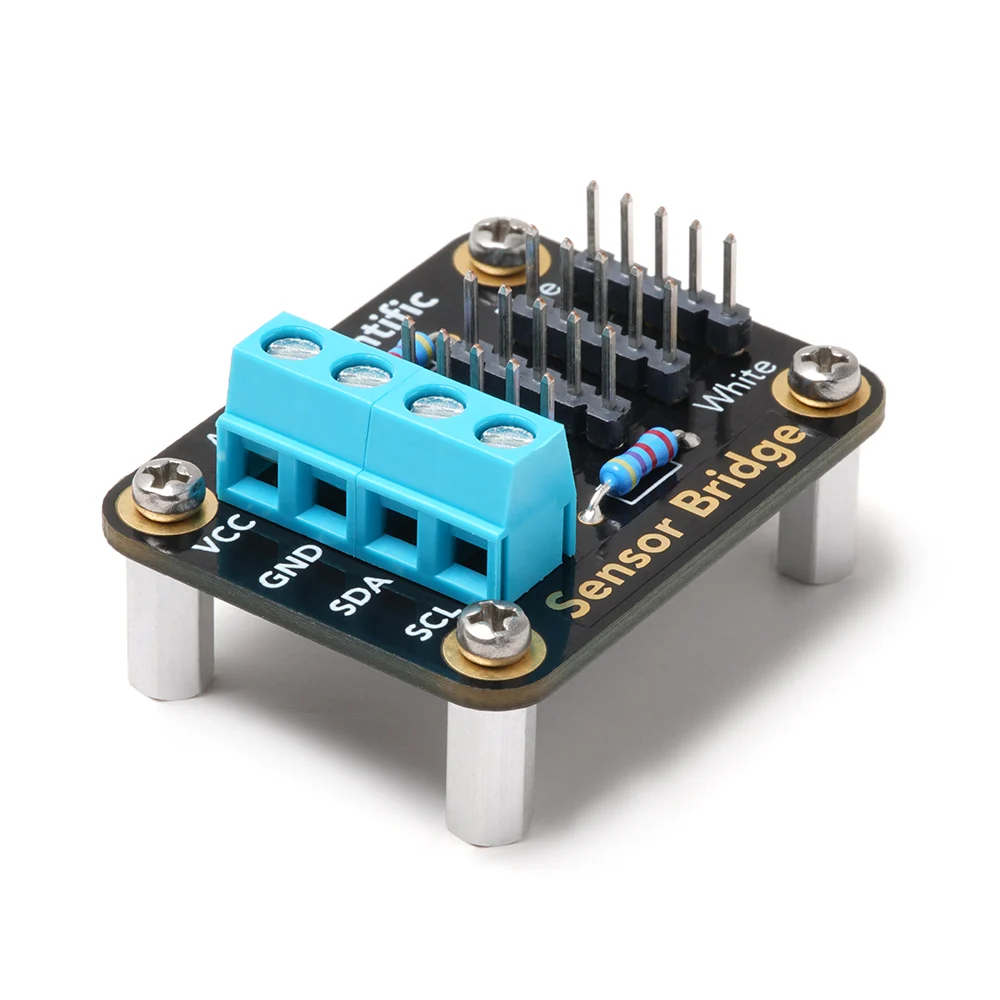

The Atlas Scientific Sensor Bridge allows you to connect 4 more sensors or pumps to your system. Wire your power, ground, and I2C directly into the screw terminals, and your sensors into the header pins. This board includes pull-up resistors, which are for proper I2C transmission. If you are using more than 1 of the same sensor/pump, be sure to change its I2C address.

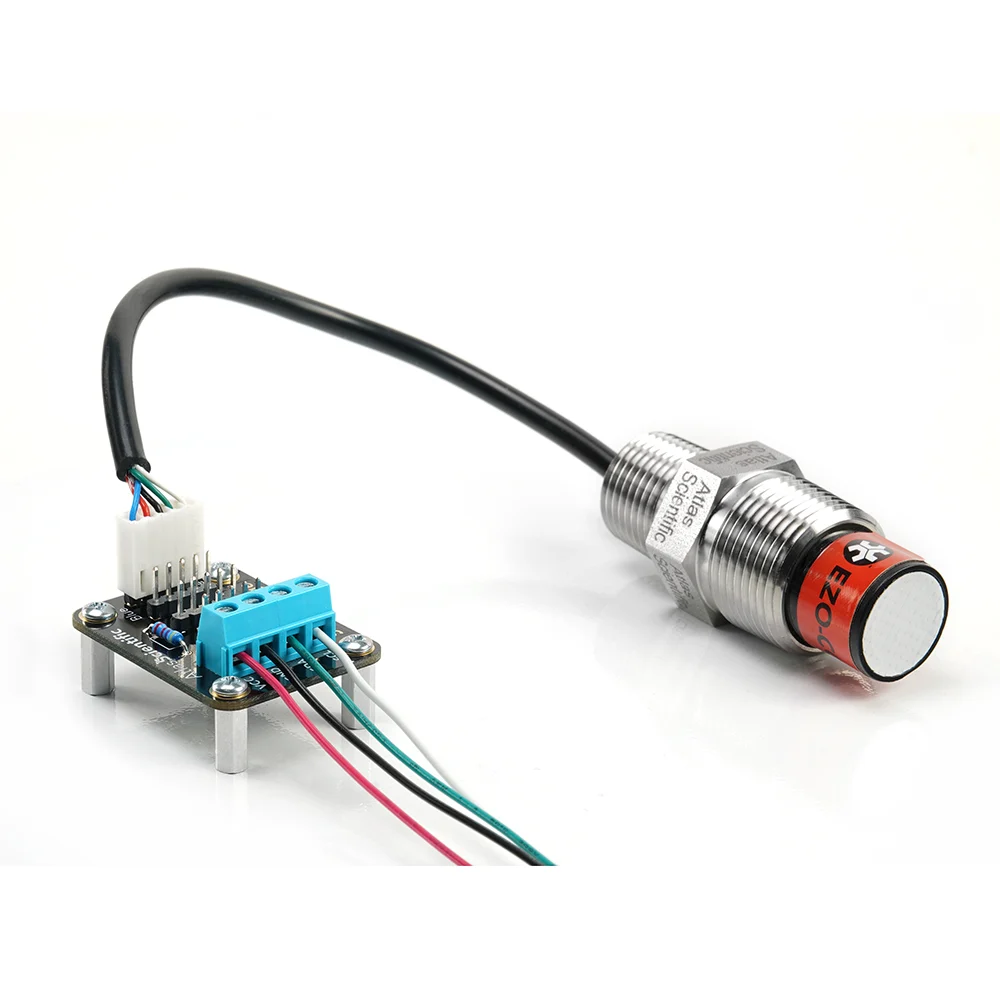

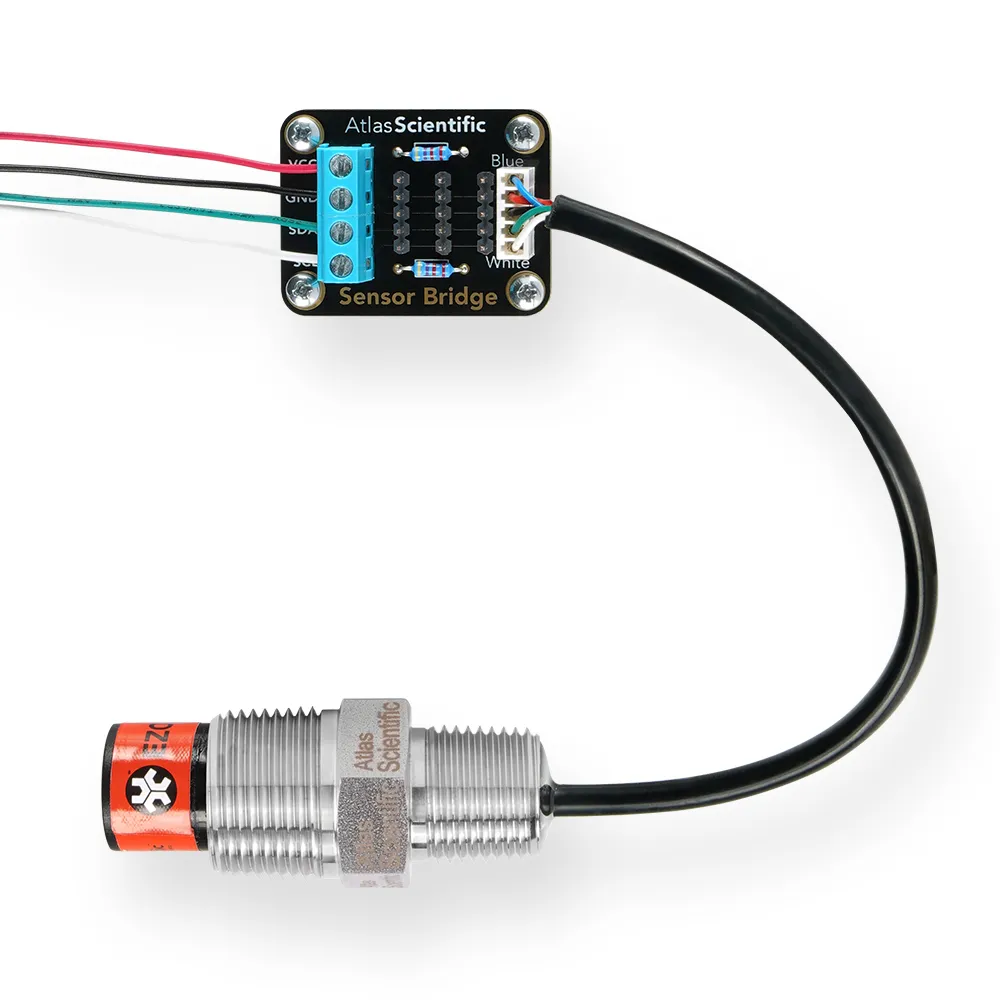

The Sensor Bridge was designed to work with the following products:
EZO-CO2 / EZO-HUM / EZO-RGB / EZO-PMP / EZO-PMP-L

• Add up to 4 pumps onto your system
• Add up to 4 more sensors into your system
