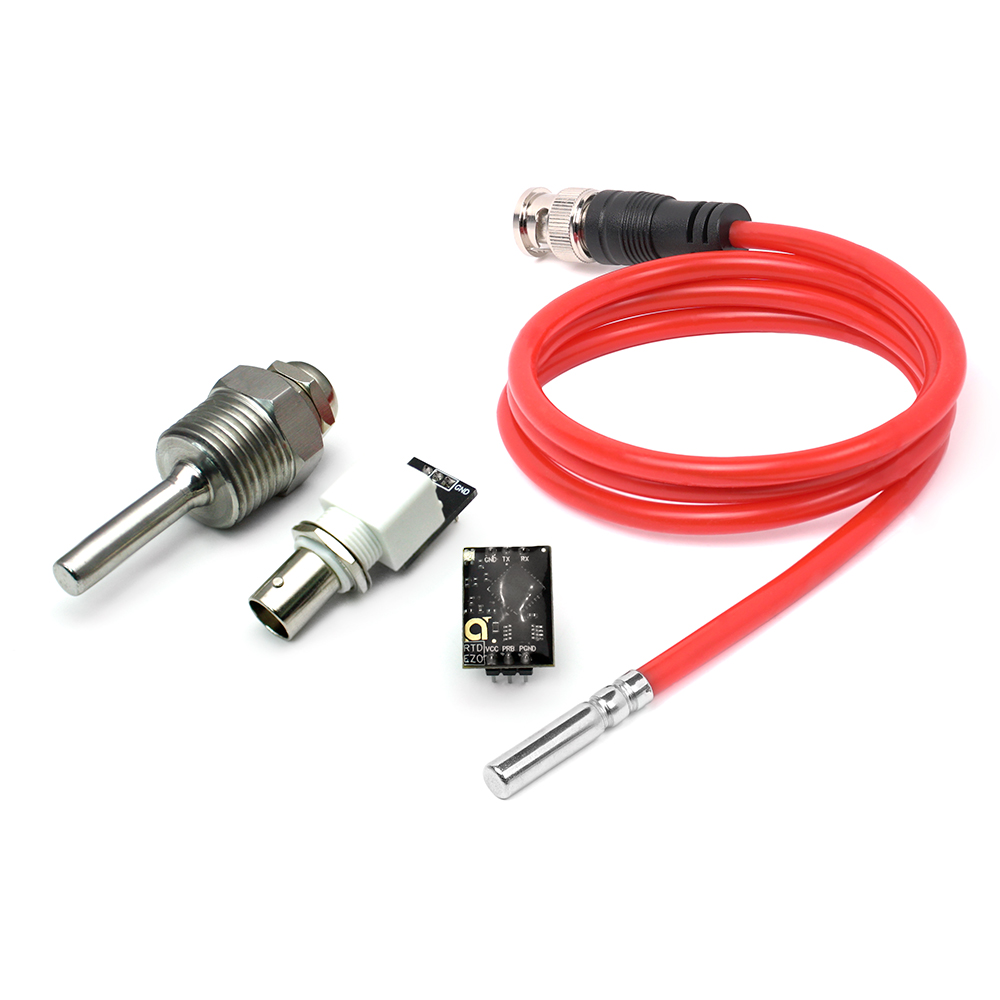

PT-1000 Temperature Kit

The Atlas Scientific PT-1000 probe is a Class-A high purity platinum RTD temperature probe with a thick silicone rubber cable. The 304 stainless steel tip quickly conducts heat from the environment to the platinum sensor inside, giving you low latency, high accuracy readings.

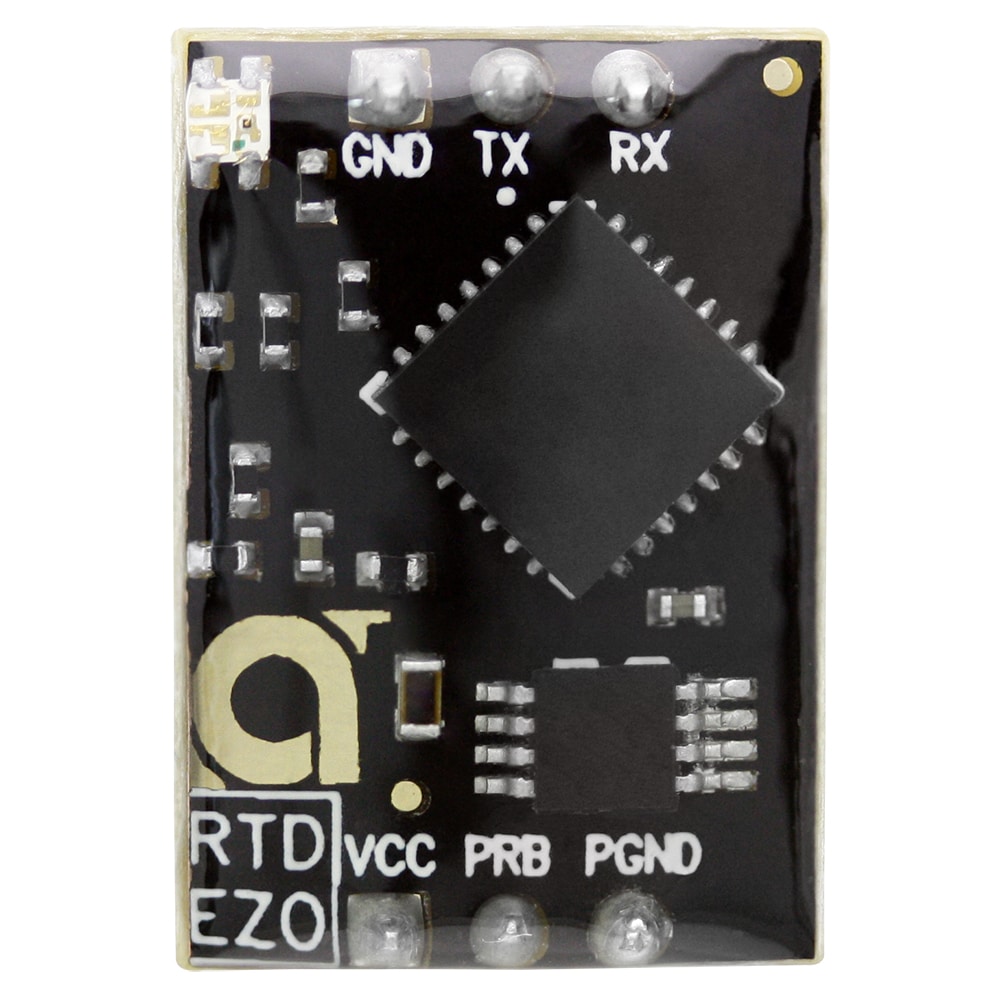

• 1 EZO™ RTD Temperature Circuit

• 1 Temperature Thermowell (choice of 100mm, 50mm or 30mm)

• 1 PT-1000 Temperature Probe with BNC connection

• Full temperature sensing range -200˚C to 850˚C

Cable Max Temp 125°C, Min Temp -55°C

(for temperatures beyond this range use Thermowell)

Cable length 81cm (32″)

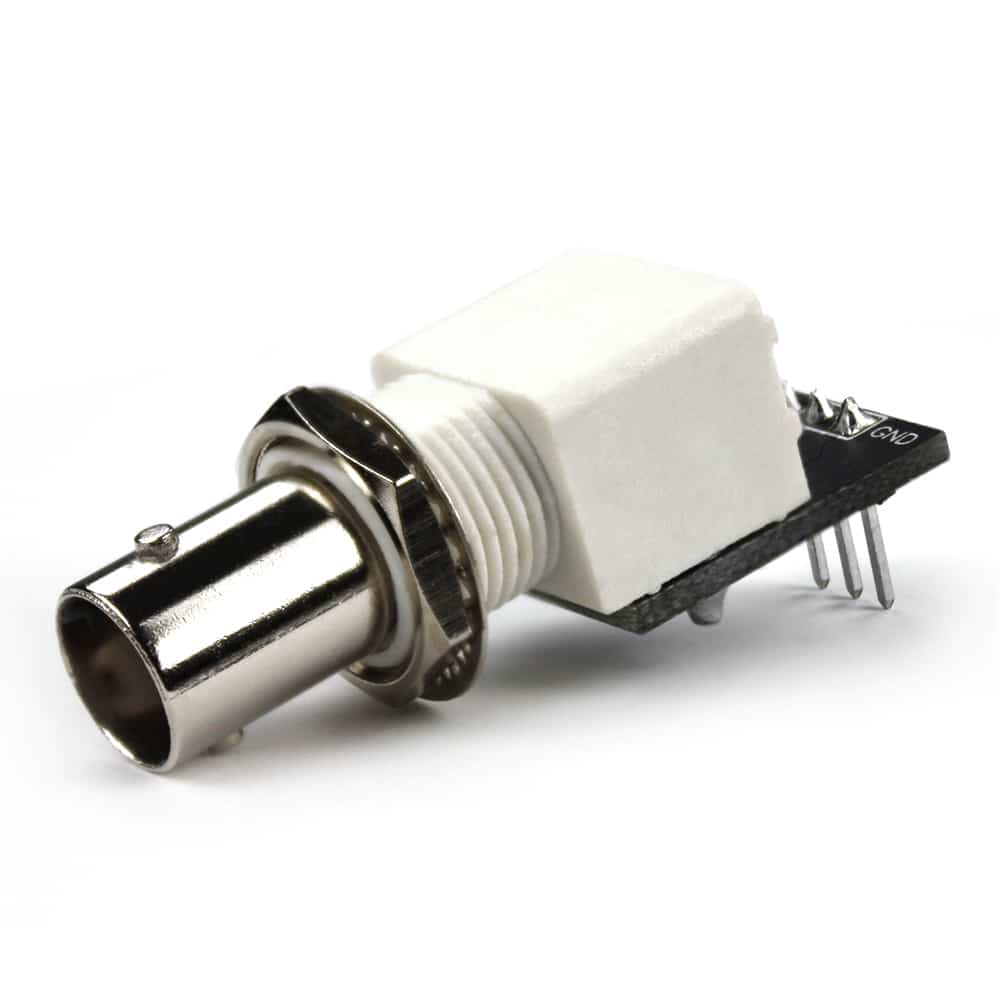

• 1 Pre-Assembled Female BNC connector

Threading: 1/2″ NPT
