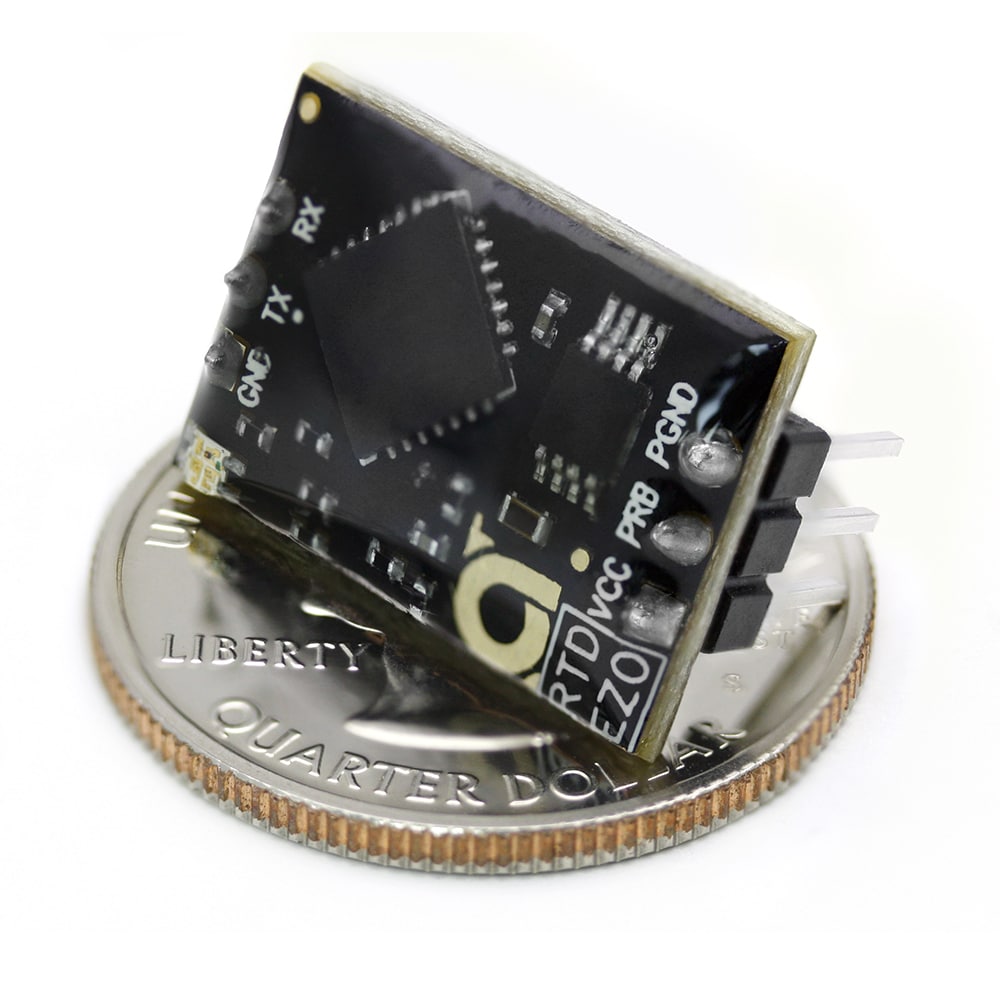

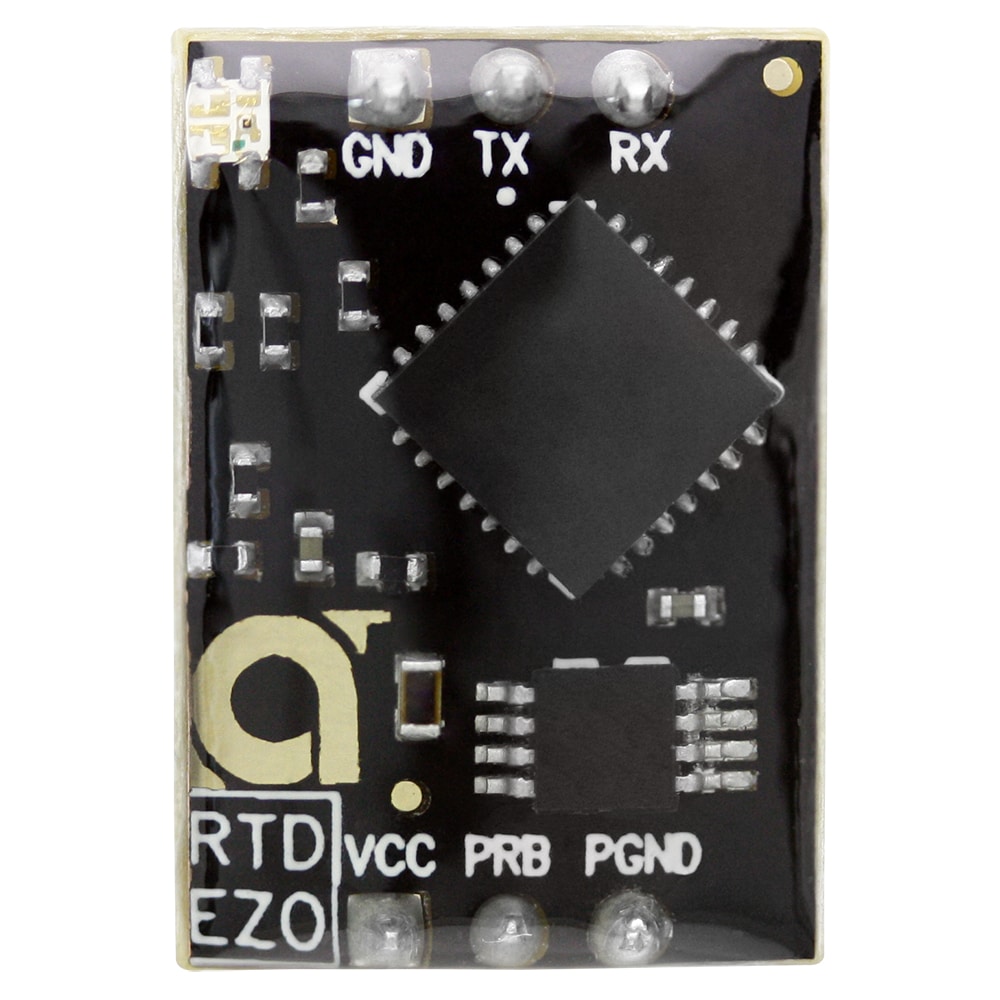

EZO™ RTD Temperature Circuit

There is no shortage of temperature probes out there, and the most accurate of all is the platinum RTD probe. But, converting the resistance of platinum to an actual temperature is unusually complicated. Fortunately, the Atlas Scientific EZO-RTD Circuit makes taking high accuracy readings from a platinum RTD probes easy. The EZO-RTD Circuit can work with any class of 2, 3, or 4 wire platinum RTD probes and has a sensing range of -126.000 °C to +1,254 °C.

RTD: Resistance Temperature Detector
Reads: Temperature
Range: -126.000 °C − 1254 °C
Resolution: 0.001
Accuracy: +/– (0.1 + 0.0017 x ̊C)
Response time: 1 reading per sec
Supported probes: Any type & brand PT-100 or PT-1000 RTD
Calibration: Single point
Temperature output: °C, °K, or °F
Data protocol: UART & I2C
Default I2C address: 102 (0x66)
Operating voltage: 3.3V − 5.5V
Data format: ASCII
Onboard Data Logger: 50 Readings
Electrical Isolation not needed

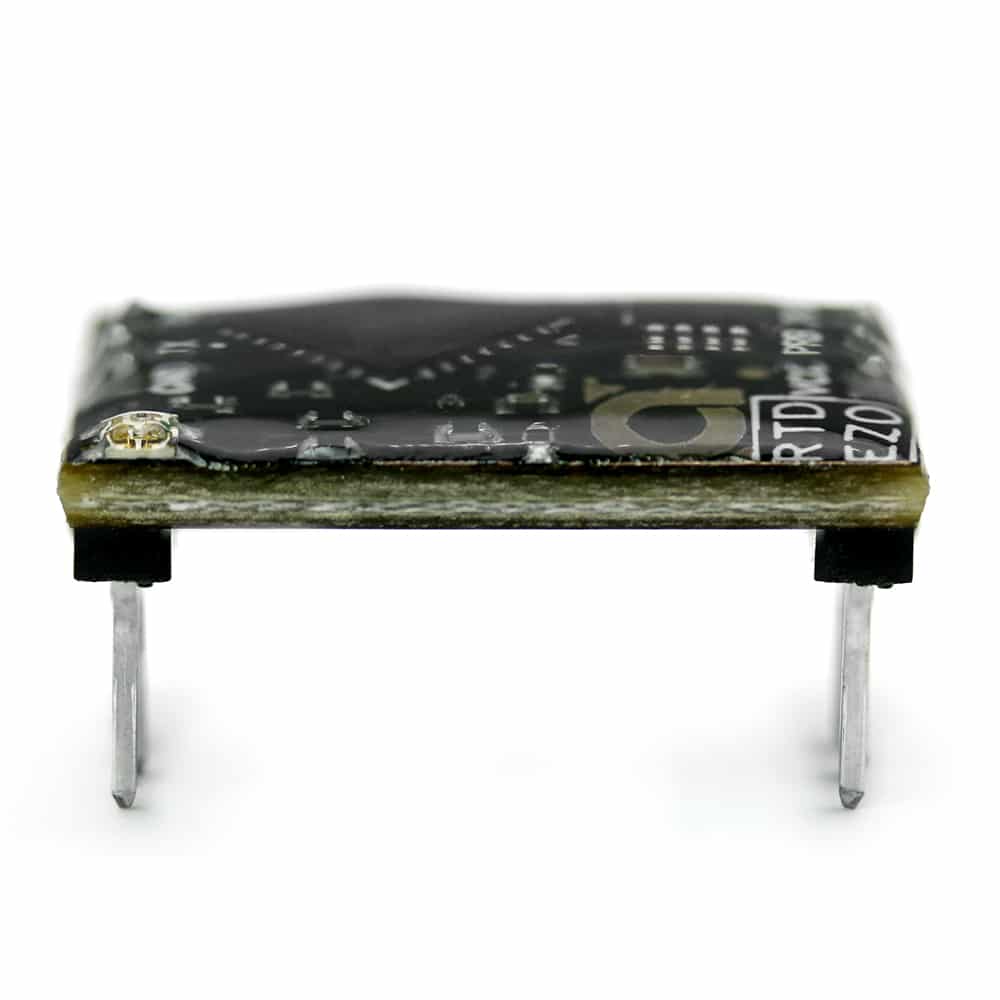

Circuit dimensions: 13.97mm x 20.16mm (0.55″ x 0.79″)
Weight:  1.76 grams
